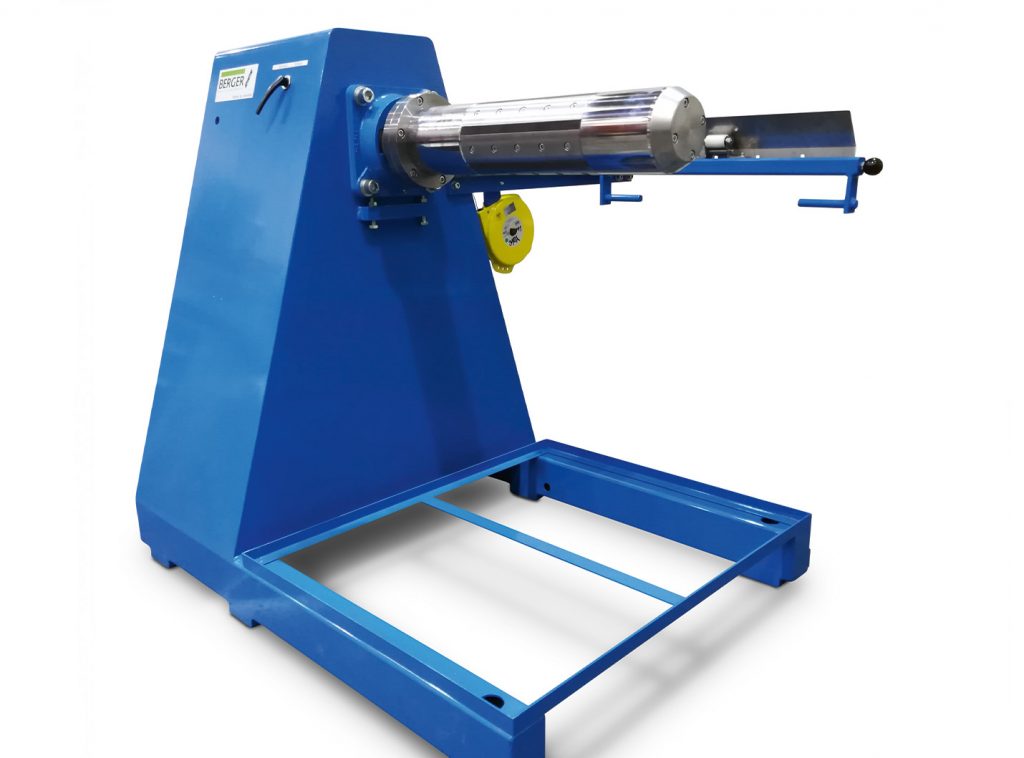

Unwinder for deep drawing press
Unwinder for deep drawing press
Your reliable, low-maintenance unwinder for your deep drawing press.
- Unwinding the roll material (aluminium coil) into a storage loop
- Processing takes place in automatic mode to keep the storage loop constant

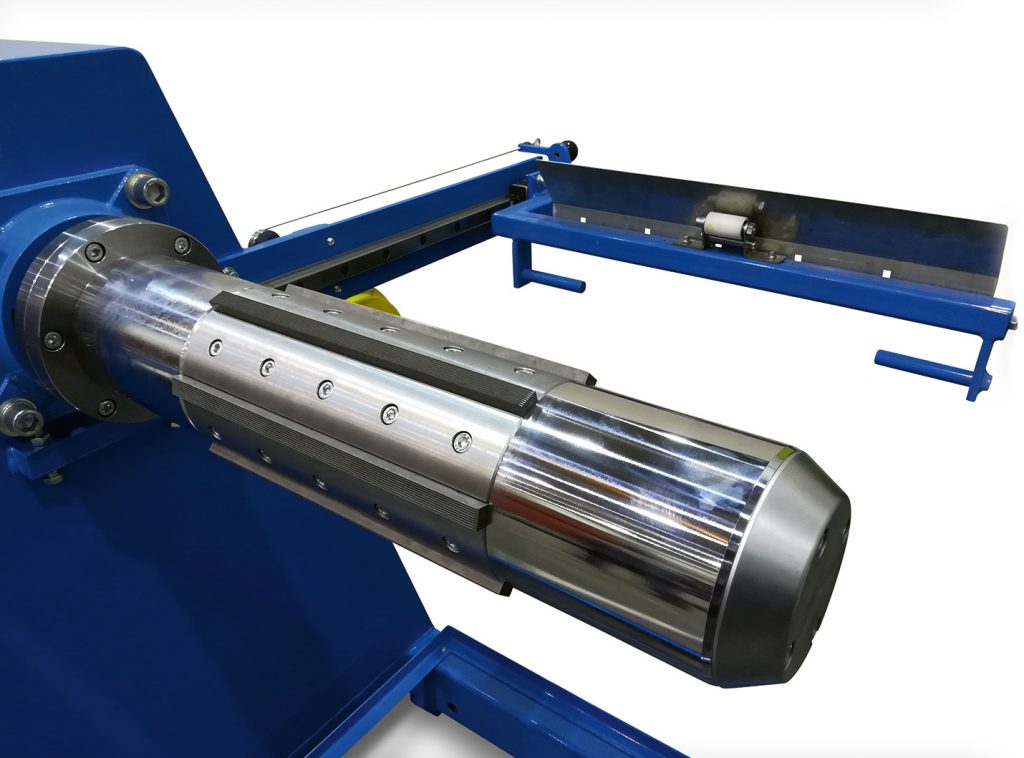

- Mechanical clamping of the roll goods by spring force
- Pneumatic release
- Clamping jaws protected against dust by spring plates
- Incl. electrics and controls
- Cycled or continuous operation selectable
| Parameter | Value |
|---|---|
| Max. coil load | 1.000 kg |
| Max. web width | 550 mm |
| Mandrel diameter | 140 mm |
| Clamping diameter | 150 mm |
| Single-sided access (axial) | - |
- Absolutely centred clamping
- Dust-protected clamping bars for a long service life
- Long clamping distance, therefore plenty of space for equipping the roller
Hauptanwendung:
- Unwinding aluminium foil for deep drawing process
Weitere Anwendungen:
- Unwinding aluminium foil and sheets for various machining processes
- Unwinding of paper and plastic films
Interested in this product?
We would be happy to advise you on your application.
